Happymodel Mobula8 RC Drone

Add your review
SKU: 1987124

Product is rated as #20 in category RC Drones
Power8.4
Material8.3
Camera7.9
Design8
  • Features an X12 5IN1 AIO flight controller incorporating 2.4G ELRS V2.0 and OPENVTX, offering a comprehensive solution for FPV pilots.
  • The VTX system delivers exceptional imaging performance and up to 400mW power output, ensuring strong signal transmission and minimal interference.
  • Equipped with the upgraded EX1103 KV110000 motors, the drone exhibits excellent stability and impressive power.
  • The CaddxFPV Ant nano-FPV camera captures smooth footage during flight.
  • The receiver supports ELRS V2.0 by default and can be upgraded to ELRS V3.0 through firmware updates.
  • It is compatible with 1S-2S Lipo / LIHV batteries, providing flexibility for different flight configurations.

Integration

At the heart of the Happymodel Mobula8 lies the X12 5IN1 AIO flight controller. This all-in-one controller integrates the 2.4G ELRS V2.0 and OPENVTX systems into a single board. This amalgamation provides FPV pilots with a reliable and efficient open-source solution. With the X12 5IN1 AIO flight controller, you can expect a smooth and responsive flying experience.

VTX System

Equipped with a high-end imaging performance VTX system, the Mobula8 delivers exceptional video transmission. With VTX power reaching 400mW, this drone ensures a robust and stable signal, even in challenging environments.

Motors

Power and stability are the hallmarks of Mobula8. This drone delivers an impressive thrust-to-weight ratio with the latest upgraded EX1103 KV110000 motors. These motors ensure stable and powerful flight characteristics, allowing you to confidently perform agile maneuvers and explore the skies.

Camera

Capture breathtaking flight footage with the Mobula8’s CaddxFPV Ant full-featured nano-FPV camera. This camera is designed to deliver calm and stable shots, ensuring the smooth and immersive recording of your FPV flights.

Receiver

The Happymodel Mobula8 comes equipped with the ELRS V2.0 receiver as the default option. This receiver provides reliable and responsive control for your drone. Additionally, the firmware can be upgraded to ELRS V3.0, allowing you to stay up-to-date with the latest advancements in FPV technology.

Battery

Enjoy extended flight options with the Mobula8 thanks to its compatibility with 1S-2S Lipo/LIHV batteries. This versatility lets you customize your flight experience according to your preferences and flying conditions.

8.5Expert Score
Happymodel Mobula8 RC Drone
Gizcoupon Review
Happymodel Mobula8 RC Drone is a small, agile, and affordable option for beginners. However, it has limitations in flight time, camera quality, and lacks advanced features. Care should be taken with its antenna design.
Power
8.4
Material
8.3
Camera
7.9
Design
8
PROS
  • Small and lightweight design
  • Agile and maneuverable flight performance
  • Durable frame and components
  • Good value for money
  • Easy to control and suitable for beginners
  • Compatible with various accessories and upgrades
CONS
  • Limited flight time due to small battery capacity
  • Camera quality is average
  • Lack of advanced features like GPS or obstacle avoidance
  • Controller range may be limited
  • Limited customer support and documentation
  • Fragile antenna design

Specification: Happymodel Mobula8 RC Drone

EX1103 KV11000 brushless motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

Weight: 0.88g
Material: PC
Pitch: 2.3inch
Props Dia: 52.17mm
Center Thickness: 5mm
Center Hole Dia: 1.5mm

X12 5-IN-1 AIO flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash ExpressLRS firmware separately
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Versio

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 model channels: 8ch/16ch
No ground interference (Transmitter and receiver 1 m from the ground): 200meter Fail safe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference (Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)

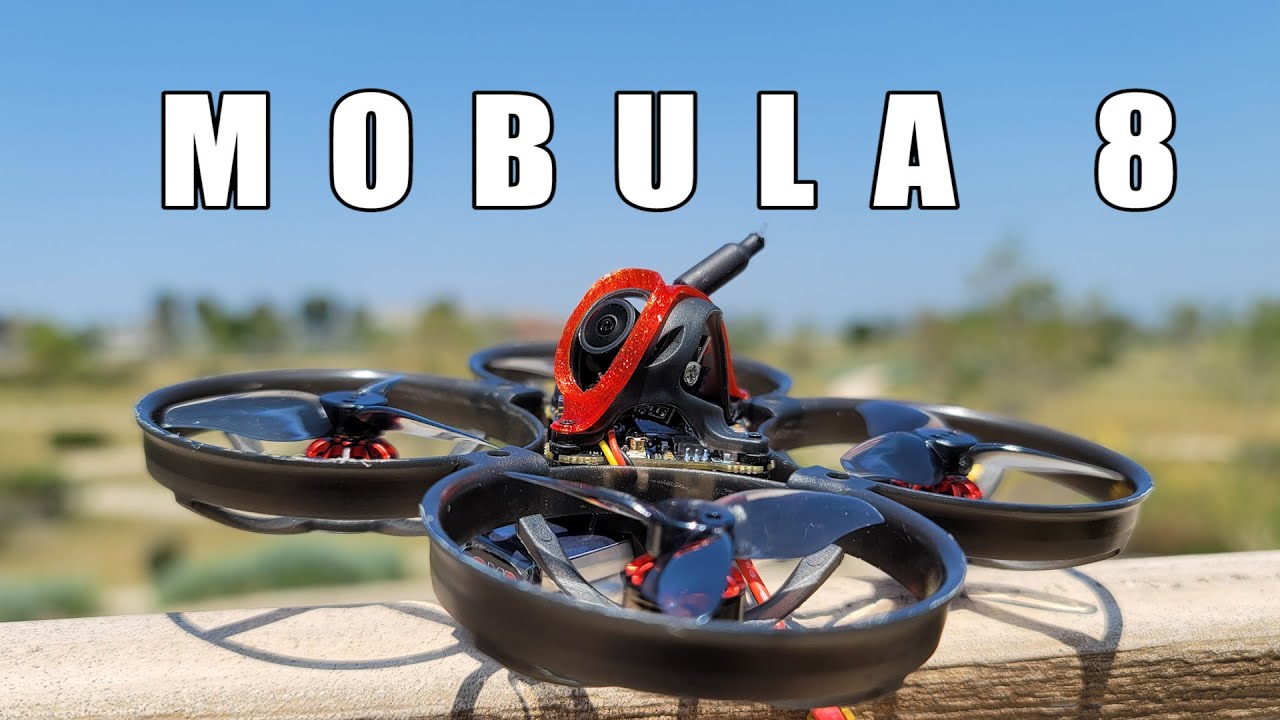

Videos: Happymodel Mobula8 RC Drone
