Versatility

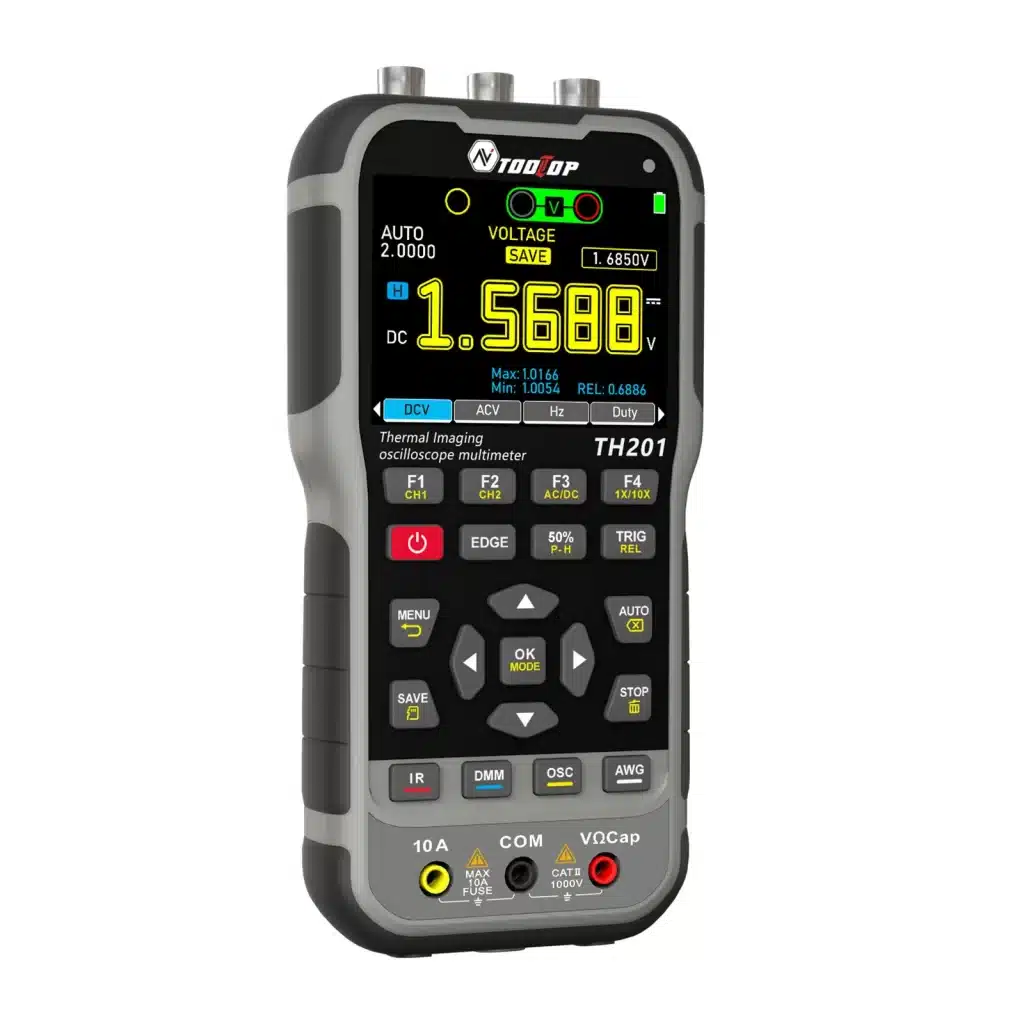

AV TOOLTOP TH201 integrated a thermal imager, dual-channel oscilloscope, digital multimeter, and signal generator. 4-in-1 versatility allowed you to carry a single lightweight device instead of four devices. Thus, it increases your work efficiency during complex field inspections and significantly reduces your overall equipment costs.
Detection Range
Thermal resolution of 288 by 240 pixels is with a wide detection range from- 20°C to 550°C for extreme environments. High-precision tracking of five hot and cold spots enabled you to instantly identify overheating components on a circuit board. It effectively prevents potential equipment failure.
Focus Lens & Color Palettes
With a professional FOV 50° lens and 5 palette modes, it enhances visual data representation. These diverse color options allowed you to see clear heat signatures in any lighting condition. It helps you detect subtle temperature differences and hidden thermal leaks when using standard settings.
Oscilloscope
AV TOOLTOP TH201 supports robust 70 megahertz single-channel and 40 megahertz dual-channel oscilloscope frequencies. The smart one-touch auto setup enables you to carry out high-speed electronic troubleshooting with professional accuracy without the need for manual calibration.
Frequency
It supports sine, triangle, or square waveforms with adjustable frequencies and duty cycles up to 4 megahertz for comprehensive circuit diagnostics. With this flexible output, you are able to run an accurate simulation of the sensor and verify the component, ensuring that all your electronics repairs are fully tested and up to standard.
